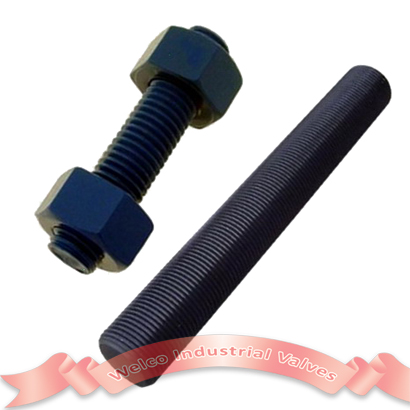

Stud bolt with 2 hex nuts

Please specify the size, length, quantity, material or grade, surface. If it is non-standard products, please send us the drawing or photos or samples to us.

Full thread or double end stud
1. DIN 975, Class 4.8, class 8.8
2. UNC, 2A, grade 2, grade 5, ASTM A193 B7
3. Size: M6 to M50 or 1/2" to3 ".
4. Length: 50mm to 4000mm or 2 to 12' (12 feet)
5. Finish: Plain, black ,zinc plated, hot dip galvanized.

STUD BOLT
Material: ASTM A193 B7, B8, B8M, A320 L7, L7M
Specification: ANSI B18.2.1, ANSI B18.2.6, DIN931 and DIN933.

HEX NUT
Material: ASTM A194 2H, ASTM A194 Gr. 8, ASTM A194 Gr. 8M, A194-4
Specification: ANSI B 18.2.2

WASHER
Flat washer and Spring Washer
Material: Carbon Steel and Stainless Steel.
Specification: ASTM F436, ANSI B 18.22.1, ANSI B18.21.1,
DIN125, DIN9021, DIN 127, DIN 7980.

Finishing (Surface): Self Color, Xylan. Black,Teflon Coating (PTFE) Black, White or Blueness Zinc (Cr.3 or Cr.6), Dacromet, Hot Dip Galv, Nickel Plating.
Packing: Carton box or plywood case.
