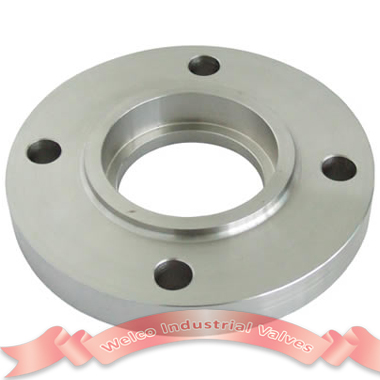

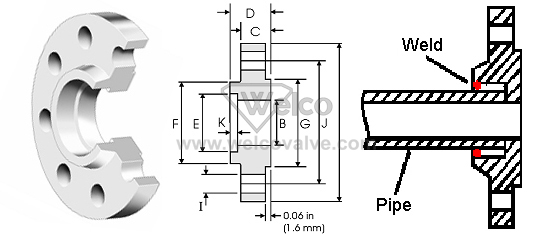

This socket weld flange is similar to slip-on flange, except they a bore and a counter bore. The counter bore is slightly larger than the Outer Diameter of the matching pipe, allowing the pipe to be inserted. A restriction is built into the bottom of the bore, which acts as a shoulder for the pipe to rest on, and has the same ID of matching pipe. The flow is not restricted in any direction.

Specification:
1) Size: 1/2 - 24"
2) Pressure class: 150 - 1500lbs
3) Facing: RF / FF / RTJ
4) Material: Stainless steel, Carbon steel, Alloy steel
5) ANSI B16. 5
6) Big size flange: ASME B16.47
7)Other standards: DIN/JIS/UNI/BS/GB

These flanges are available in all of our stainless steel and chrome-moly grades, from 1/2" to 36" and beyond, class 150 to 2500.

We provides ASME Code and Non-code Industrial flanges for the Petrochemical, Process, & Waterworks industries. ANSI, API, AWWA pipe flanges in carbon, stainless, alloys and chrome steel. Weld Neck, Slip on, Blind, Threaded, socket weld, Lap Joint, Orifice Flanges in sizes 1/2" to 120".
